Providing quality wiring for your custom needs.

Many of our industrial projects are considered proprietary and cannot be photographed. However, please take time to view the photos we do have and contact us if you have any questions.

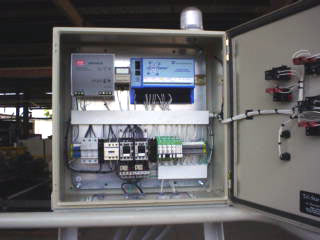

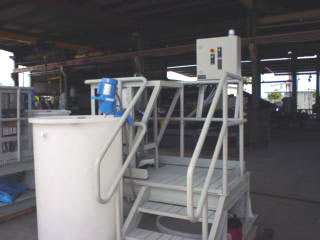

Mixer used in the mining industry Mixer used in the mining industry Mixer used in the mining industry Mixer used in the mining industry

These pictures are of a special mixer used in the mining industry for automatically generating a solution for a leach pond. This one is going to Mexico. We made two of these control panels for TriStar Design. They designed all the mechanicals and we did the electrical and controls.

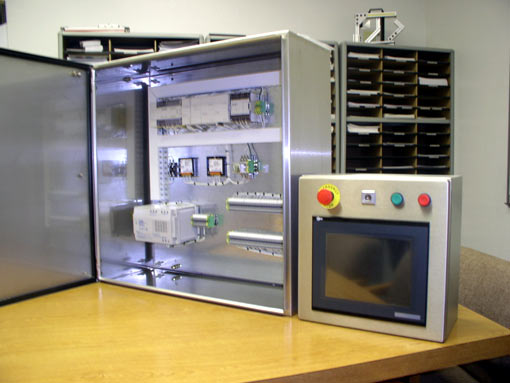

Control enclosure for a hydraulics test stand.

Control enclosure for a hydraulics test stand. Smaller enclosure contains the flat panel display for operator. The larger enclosure held the PLC and valve drivers and served as an interface to a third pump control enclosure.

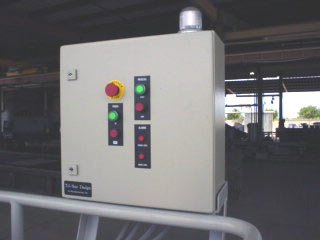

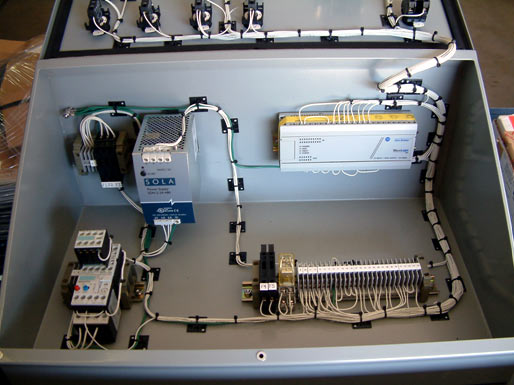

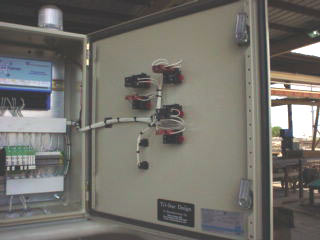

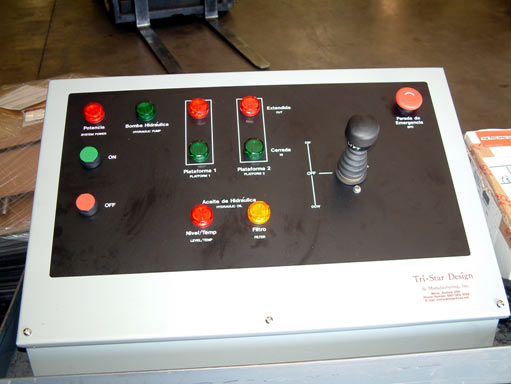

Remote control for a mine agitator designed by Arizona-based Tri-Star Design Control panel internals. All components were chosen because of their local availability near the foreign mine.

Remote control for a mine agitator designed by Arizona-based Tri-Star Design. The 40,000 pound agitator rotated at up to one rpm in the direction and speed designated by the joystick. System status was given to the operator by simple indicator lights with information provided in Spanish and English.

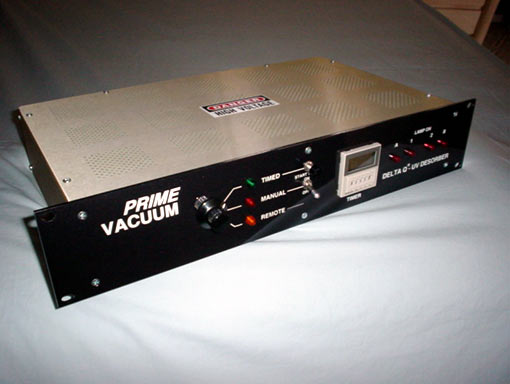

Control panel for a special application UV lamp built by California-based Prime Vacuum

Control panel for a special application UV lamp built by California-based Prime Vacuum. System could be operated locally in a timed or manual mode, or remotely by an external controller.

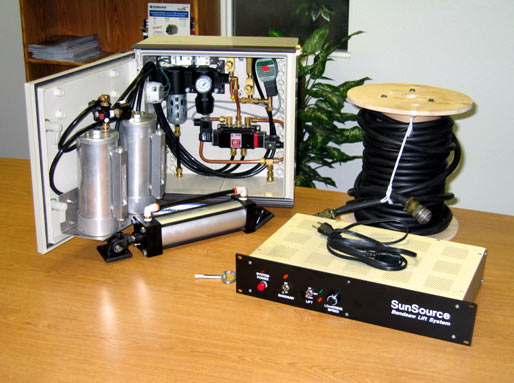

Control system used to operate a large bandsaw.

Control system used to operate a large bandsaw. The saw is used to remove the warheads from test missiles and small rockets. The main enclosure is mounted on the saw and controls the speed and direction of motion. It also had to fulfill very tight space restrictions. The remote panel is contained in a blockhouse almost 100 feet away from the saw.

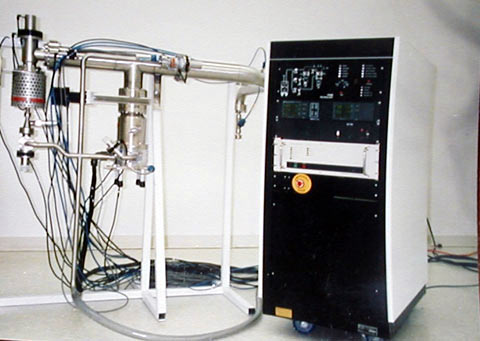

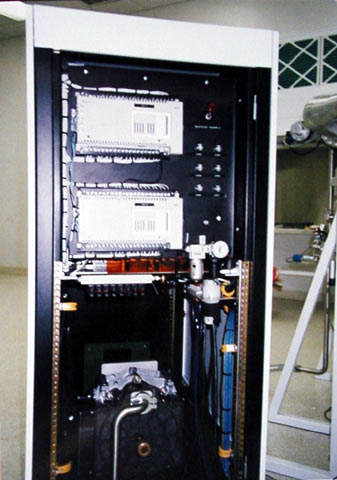

satellite test station vacuum system rear of the control console showing the master and slave PLCs, pneumatics, and power distribution

This satellite test station vacuum system was custom made for a major aerospace company in conjunction with Prime Technology of Santa Barbara, CA. The system is shown here in a temporary test fixture. Custom Connections was responsible for the controls portion of the project.

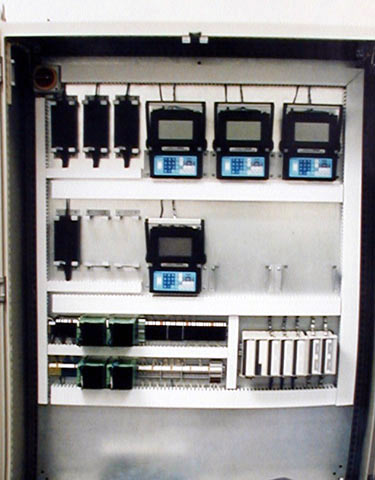

control enclosure containing a PLC, dual redundant power supplies, flow meters, and expansion space

This is an Ultra-pure water facility flow meter panel used to display water flow from various points within a water system and then relay those measurements to a master control system.

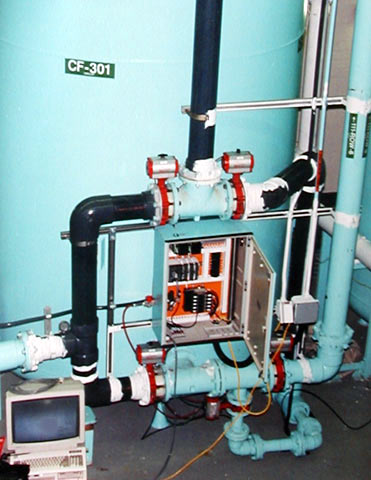

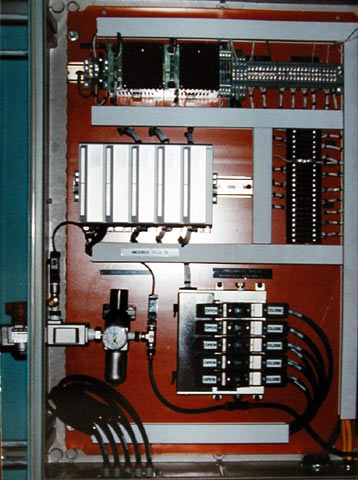

DI Water production facility Carbon Bed filter with a control enclosure mounted and in the testing process controls enclosure interior showing the PLC controller, pneumatic valves, and redundant 24vdc power supplies

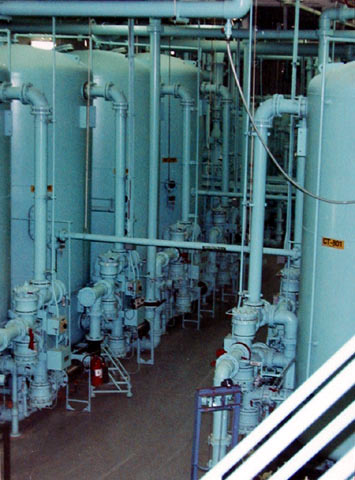

This is a portion of a DI Water production facility. Custom Connections built the control enclosures that were ultimately installed on many of these tanks. The Carbon Bed filter removed chlorine from incoming raw water. The controls managed the regeneration process for each individual filter and also sequenced that operation with the five other filters.
